Description

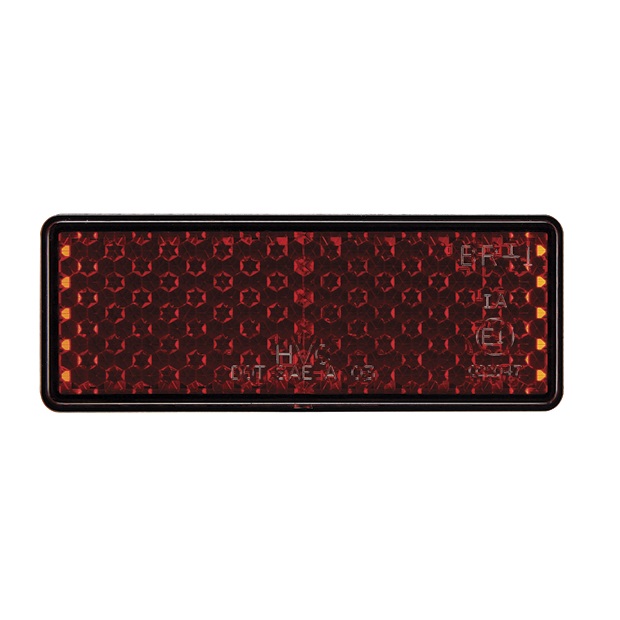

Horizontal placed.
Reflector with Sophisticated Pin System.
L 87.2mm x W 33mm

Features

Len's Color Spec. :
1. Side - Amber
2. Rear - Red

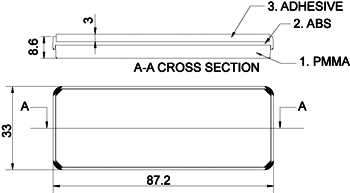

Fastening Methods

Model No.：BR-1

Len's Color Spec.：AAmber,Red with Adhesive

Safety Standard：ECE.SAE

Qty：1000 Ctn

Wt/Ctn：17.1 GW/KG

Carton Size(LxWxH)：0.358 x 0.358 x 0.4m

Vol：0.0512 CBM

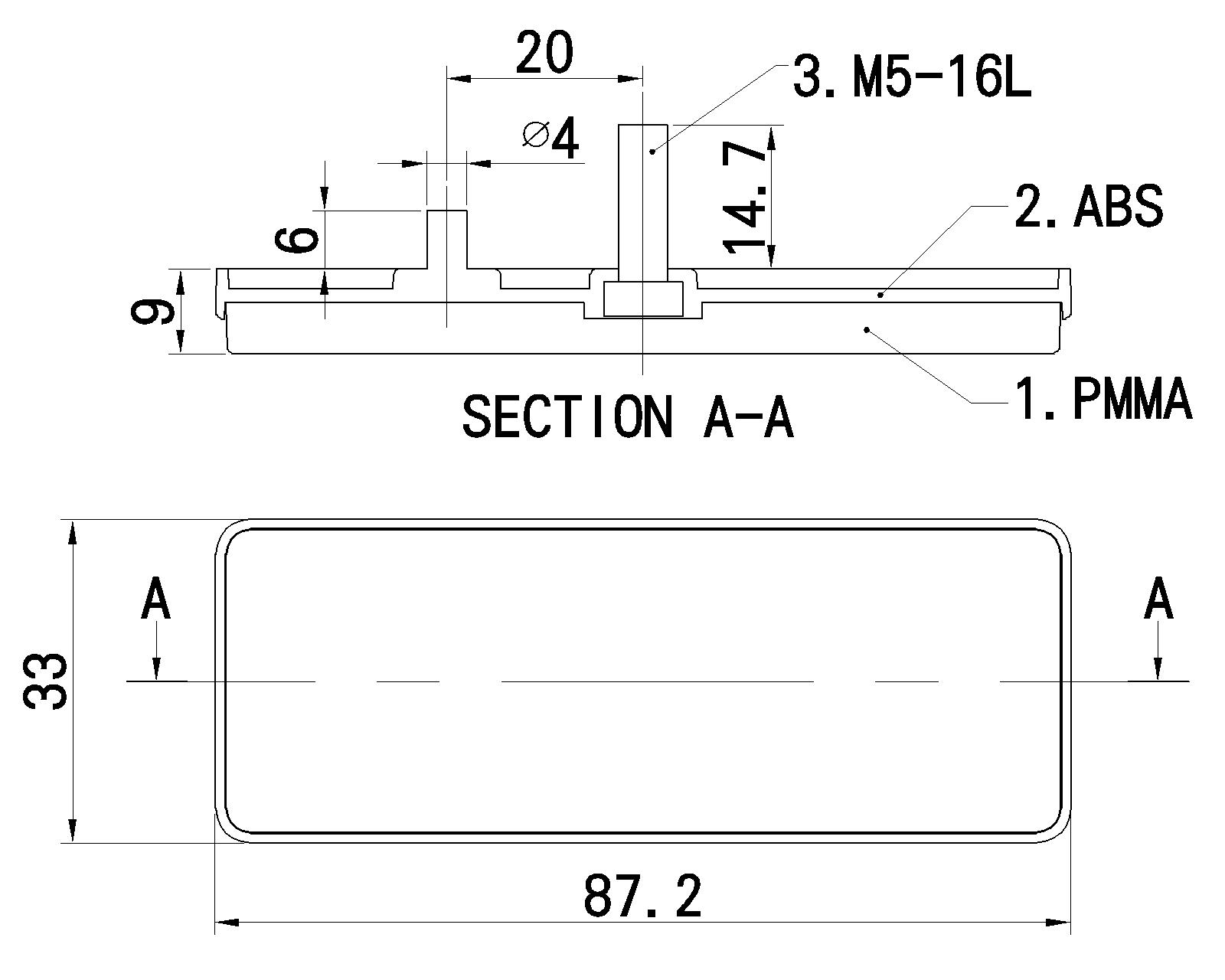

Model No.：BR-1A-M5

Len's Color Spec.：Amber,Red M5x16 screw

Safety Standard：ECE.SAE

Qty：600 Ctn

Wt/Ctn：13.7 GW/KG

Carton Size(LxWxH)：0.358 x 0.358 x 0.412m

Vol：0.0528 CBM

Model No.：BR-1A-M6

Len's Color Spec.：Amber,Red M6x16 screw

Safety Standard：ECE.SAE

Qty：600 Ctn

Wt/Ctn：18.3 GW/KG

Carton Size(LxWxH)：0.379 x 0.379 x 0.442m

Vol：0.0634 CBM

Safety/Quality Approvals

ECE R3, SAE
